Features
Small contactless displacement meter
Non-contact, so measurement of rotating objects is possible.
The sensor and amplifier are separated and have excellent environmental resistance.
Fast 4 kHz response. (Available up to 20 kHz)
Can be manufactured to 150°C heat resistance specifications.
Custom orders starting from one unit accepted.
(Delivery: 2 months)
(Delivery: 2 months)
![Flat Pulse Coder - Standard](../../wp-content/themes/levex/img/products/11/top.jpg)
Model
FP | 10 | – | 02 | – | 1 | – | S |
---|---|---|---|---|---|---|---|
① | ② | ③ | ④ | ⑤ |
① | Model classification | FP | : | Flat Pulse Coder |
② | Sensor diameter(mm) | 03 | : | φ3 |
05 | : | φ5 | ||
10 | : | φ10 | ||
25 | : | φ25 | ||
M4 | : | M4 | ||
M20 | : | M20 | ||
③ | Measuring range (mm) | 008 | : | 0.8 |
013 | : | 1.3 | ||
02 | : | 2 | ||
10 | : | 10 | ||
④ | Amplifier | 1 | : | CV05 |
2 | : | CVS5 | ||
⑤ | Cable pull-auto direction | S or none | : | Straight |
L | : | L-direction |
Specification
Model | FP | |
---|---|---|
Sensor diameter (mm) | φ3~ | |
Target | Material | Iron, aluminum, copper |
Temperature characteristics | 2%/FS or less (0 to 60℃ @ center of measurement range) | |
Operating temperature range(℃) | -20~80 |

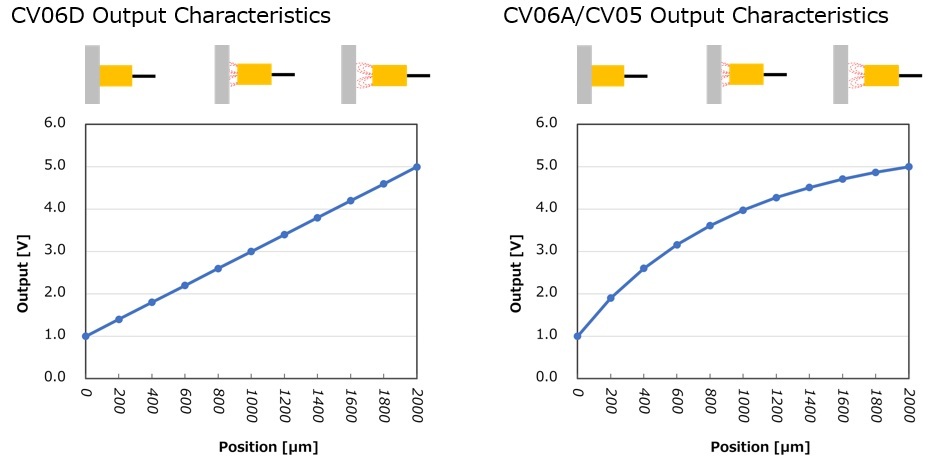

Output characteristics
![Output characteristics](../../wp-content/themes/levex/img/en/products/11/img_03.jpg)
Sensor model:FP05-001
Sensor diameter:φ5㎜
Measuring range:1㎜
Sensor diameter:φ5㎜
Measuring range:1㎜
Outline drawing
Cylindrical shape
![Outline drawing](../../wp-content/themes/levex/img/en/products/11/img_04.jpg)
(mm) | |||
Model | φD | L | Measuring range |
---|---|---|---|
FP03-008 | 4 | 10 | 0.8 |
FP05-02 | 5 | 10 | 2 |
[Measument case / FP03-008]
![FP03-008](../../wp-content/themes/levex/img/en/products/11/img_05.jpg)
FP25-10-S
(Measuring range:10㎜)
![FP25-10-S](../../wp-content/themes/levex/img/en/products/11/img_06.jpg)
FP25-10-L
(Measuring range:10㎜)
![FP25-10-L](../../wp-content/themes/levex/img/en/products/11/img_07.jpg)
Screw shape
FPM04-008
(Measuring range:0.8㎜)
![FPM04-008](../../wp-content/themes/levex/img/en/products/11/img_08.jpg)
FPM20-013
(Measuring range:1.3㎜)
![FPM20-013](../../wp-content/themes/levex/img/en/products/11/img_09_2.jpg)
Application examples
![Application examples](../../wp-content/themes/levex/img/en/products/11/img_09.jpg)
Converter(CV05/CVS5/Mold)
Amplifier
Specification
Model | CV05 | CVS5 CVS5(Resin case type) |
---|---|---|
Power-supply voltage | DC12~24V ±10% | DC9~16V ±10% |
Current consumption | 40mA or less | |
Output voltage | Analog output DC1~5V | |
Resolution | Approx 1/2000 of measuring range | |
Responsiveness | About 4kHz(-3dB) | |
Operating temperature range | -20~80℃ (No condensation) | |
Temperature characteristics | 0.025%/FS or less (0 to 60℃ @ center of measurement range) |
Outline drawing
CV05
![CV05](../../wp-content/themes/levex/img/products/05/img_05.jpg)
![CV05](../../wp-content/themes/levex/img/en/products/05/img_06.jpg)
CVS5
![CVS5](../../wp-content/themes/levex/img/products/05/img_07.jpg)
![CVS5](../../wp-content/themes/levex/img/en/products/05/img_08.jpg)
CVS5(Built-in resin case type)
![CVS5(Built-in resin case type)](../../wp-content/themes/levex/img/products/05/img_09.jpg)
![CVS5(Built-in resin case type)](../../wp-content/themes/levex/img/en/products/05/img_10.jpg)
(Options) CV05 sync board
Purpose
When multiple sensors of the same type are used, periodic interference noise may occur in the output.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.
Lineup
For 2 axes
![For 2 axes](../../wp-content/themes/levex/img/products/05/img_11.jpg)
![For 2 axes](../../wp-content/themes/levex/img/en/products/05/img_12.jpg)
For 4 axes
![For 4 axes](../../wp-content/themes/levex/img/products/05/img_13.jpg)
![For 4 axes](../../wp-content/themes/levex/img/en/products/05/img_14.jpg)
For 6 axes
![For 6 axes](../../wp-content/themes/levex/img/products/05/img_15.jpg)
![For 6 axes](../../wp-content/themes/levex/img/en/products/05/img_16.jpg)
Precautions for use
– Only connect sensors and amplifiers with the same serial numbers.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.
Output – power cable
Connection configuration
![Connection configuration](../../wp-content/themes/levex/img/en/products/05/img_17.jpg)
Standard
Cable: Dedicated 4-core cable (Length:2m)
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
![Connection configuration](../../wp-content/themes/levex/img/en/products/05/img_18.jpg)
(End treatment example) * We fit a range of connectors.
(Signal side) With BNC conversion cable
![(Signal side) With BNC conversion cable](../../wp-content/themes/levex/img/en/products/05/img_19.jpg)
(Signal side) BNC conversion cable + (Power supply side) Banana plug
![(Signal side) BNC conversion cable + (Power supply side) Banana plug](../../wp-content/themes/levex/img/en/products/05/img_20.jpg)
(Signal line) With Tajimi Electronics connector
![(Signal line) With Tajimi Electronics connector](../../wp-content/themes/levex/img/en/products/05/img_21.jpg)
