Features
Small contactless displacement meter
The sensor and amplifier are separated and have excellent environmental resistance.
Fast 4 kHz response. (Available up to 20 kHz)
150°C heat resistant specifications.
Custom orders starting from one unit accepted. (Delivery: 2 months)
![Flat Pulse Coder - For Embedding into Molds](../../wp-content/themes/levex/img/en/products/12/top.jpg)
Specification
Model | FP10-002 | |
---|---|---|
Sensor diameter (mm) | φ10 | |
Target | Material | Iron |
Temperature characteristics | 0.05%/FS or less (0 to 150℃ @ center of measuring range) | |
Operating temperature range(℃) | -20~150 | |
Lead-out cable | Length (m) | 2 (Max.6m) |
Outer diameter | φ2.3 heat resistant fluorine resin cable |

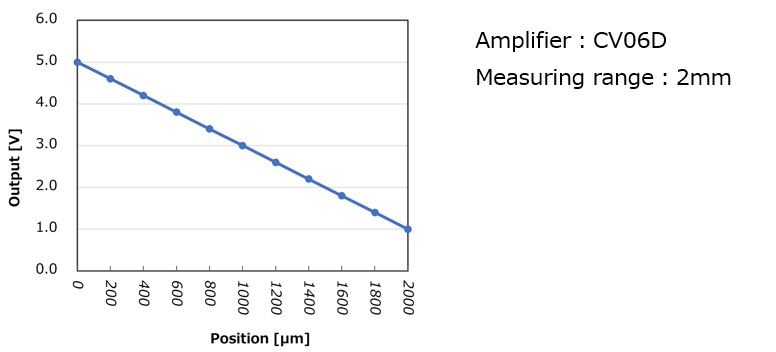

Output characteristics
![Output characteristics](../../wp-content/themes/levex/img/en/products/12/img_04.jpg)

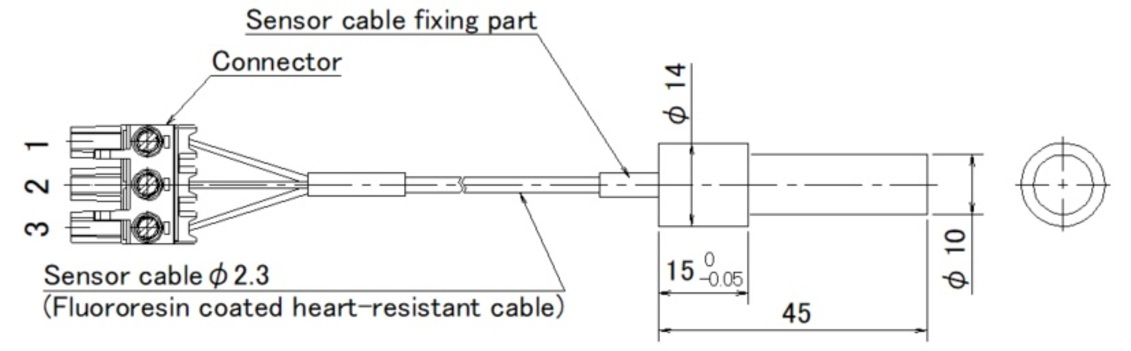

Outline drawing
![Outline drawing](../../wp-content/themes/levex/img/en/products/12/img_02.jpg)

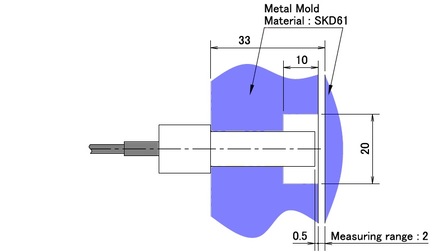

Installation example
![Installation example](../../wp-content/themes/levex/img/en/products/12/img_03.jpg)
Converter(CV05/CVS5/Mold)
Amplifier
Specification
Model | CV05 | CVS5 CVS5(Resin case type) |
---|---|---|
Power-supply voltage | DC12~24V ±10% | DC9~16V ±10% |
Current consumption | 40mA or less | |
Output voltage | Analog output DC1~5V | |
Resolution | Approx 1/2000 of measuring range | |
Responsiveness | About 4kHz(-3dB) | |
Operating temperature range | -20~80℃ (No condensation) | |
Temperature characteristics | 0.025%/FS or less (0 to 60℃ @ center of measurement range) |
Outline drawing
CV05
![CV05](../../wp-content/themes/levex/img/products/05/img_05.jpg)
![CV05](../../wp-content/themes/levex/img/en/products/05/img_06.jpg)
CVS5
![CVS5](../../wp-content/themes/levex/img/products/05/img_07.jpg)
![CVS5](../../wp-content/themes/levex/img/en/products/05/img_08.jpg)
CVS5(Built-in resin case type)
![CVS5(Built-in resin case type)](../../wp-content/themes/levex/img/products/05/img_09.jpg)
![CVS5(Built-in resin case type)](../../wp-content/themes/levex/img/en/products/05/img_10.jpg)
(Options) CV05 sync board
Purpose
When multiple sensors of the same type are used, periodic interference noise may occur in the output.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.
Lineup
For 2 axes
![For 2 axes](../../wp-content/themes/levex/img/products/05/img_11.jpg)
![For 2 axes](../../wp-content/themes/levex/img/en/products/05/img_12.jpg)
For 4 axes
![For 4 axes](../../wp-content/themes/levex/img/products/05/img_13.jpg)
![For 4 axes](../../wp-content/themes/levex/img/en/products/05/img_14.jpg)
For 6 axes
![For 6 axes](../../wp-content/themes/levex/img/products/05/img_15.jpg)
![For 6 axes](../../wp-content/themes/levex/img/en/products/05/img_16.jpg)
Precautions for use
– Only connect sensors and amplifiers with the same serial numbers.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.
Output – power cable
Connection configuration
![Connection configuration](../../wp-content/themes/levex/img/en/products/05/img_17.jpg)
Standard
Cable: Dedicated 4-core cable (Length:2m)
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
![Connection configuration](../../wp-content/themes/levex/img/en/products/05/img_18.jpg)
(End treatment example) * We fit a range of connectors.
(Signal side) With BNC conversion cable
![(Signal side) With BNC conversion cable](../../wp-content/themes/levex/img/en/products/05/img_19.jpg)
(Signal side) BNC conversion cable + (Power supply side) Banana plug
![(Signal side) BNC conversion cable + (Power supply side) Banana plug](../../wp-content/themes/levex/img/en/products/05/img_20.jpg)
(Signal line) With Tajimi Electronics connector
![(Signal line) With Tajimi Electronics connector](../../wp-content/themes/levex/img/en/products/05/img_21.jpg)
