TOP > Linear Pulse Coder – Standard

Linear Pulse Coder – Standard

Features

Small displacement meter
Single-coil structure allows for short sensor production.
The sensor and amplifier are separated and have excellent environmental resistance.
Fast 4 kHz response.
Linear Pulse Coder - Standard

Model

LP 40 040 LF 1
Model classification LP : Linear Pulse Coder
Sensor diameter (mm) 15 : φ1.5
20 : φ2.0
40 : φ4.0
Measuring range (mm) 040 : 40
Shape of mounting part D8S : φ8 cylindrical
R8 : M8 screw
LF : Flange
Amplifier 1 : CV05
2 : CVS5

Specification

Model LP40
Sensor outer diameter (mm) φ4
Target Material Brass pipe(C2700)
Outer diameter (mm) φ6(-0.01/-0.05)
Inner diameter(mm) φ5(±0.03)
Linearity (mm) ±1%/FS or less (0 to 60℃ @ center of measurement range)
Temperature characteristics 1%/FS or less(0~60℃)
Operating temperature range(℃) -20~80 (include the state of preservation)
Lead-out cable Length (m) 2
Outer diameter (mm) 3.4 (with 3 pin connector)
Protective structure equivalent to IP64
Magnetic field resistance 0.2T (Tesla)

Outline drawing

R type

R type
(mm)
Model LR SR PR
LP40-010-R8 34.5 10 17
LP40-016-R8 43.5 16 18.5
LP40-025-R8 57.5 25 21
LP40-040-R8 77.5 40 23.5

Note: Tightening torque not to exceed 4.7 Nm

LF type

LF type
(mm)
Model LL SL PL
LP40-010-LF 27 10 9.5
LP40-016-LF 36 16 11
LP40-025-LF 50 25 13.5

D8S type

D8S type
(mm)
Model LD SD PD
LP40-010-D8S 23.5 10 6
LP40-016-D8S 32.5 16 7.5
LP40-025-D8S 46.5 25 10
LP40-040-D8S 66.5 40 12.5

Target pipe

Target pipe
(mm)
Model Q
LP40-010 27.5
LP40-016 35
LP40-025 46.5
LP40-040 64

Converter(CV05/CVS5/Mold)

Amplifier

Specification

Model CV05 CVS5
CVS5(Resin case type)
Power-supply voltage DC12~24V ±10% DC9~16V ±10%
Current consumption 40mA or less
Output voltage Analog output DC1~5V
Resolution Approx 1/2000 of measuring range
Responsiveness About 4kHz(-3dB)
Operating temperature range -20~80℃ (No condensation)
Temperature characteristics 0.025%/FS or less (0 to 60℃ @ center of measurement range)

Outline drawing

CV05
CV05
CV05
CVS5
CVS5
CVS5
CVS5(Built-in resin case type)
CVS5(Built-in resin case type)
CVS5(Built-in resin case type)

(Options) CV05 sync board

Purpose

When multiple sensors of the same type are used, periodic interference noise may occur in the output.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.

Lineup

For 2 axes
For 2 axes
For 2 axes
For 4 axes
For 4 axes
For 4 axes
For 6 axes
For 6 axes
For 6 axes

Precautions for use

– Only connect sensors and amplifiers with the same serial numbers.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.

Output – power cable

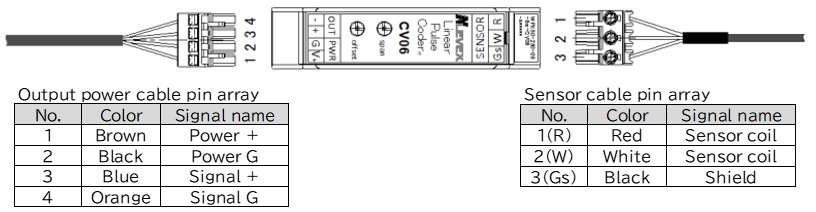

Connection configuration

Connection configuration

Standard

Cable: Dedicated 4-core cable (Length:2m)
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
Connection configuration

(End treatment example) * We fit a range of connectors.

(Signal side) With BNC conversion cable

(Signal side) With BNC conversion cable

(Signal side) BNC conversion cable + (Power supply side) Banana plug

 (Signal side) BNC conversion cable + (Power supply side) Banana plug

(Signal line) With Tajimi Electronics connector

 (Signal line) With Tajimi Electronics connector
