Features

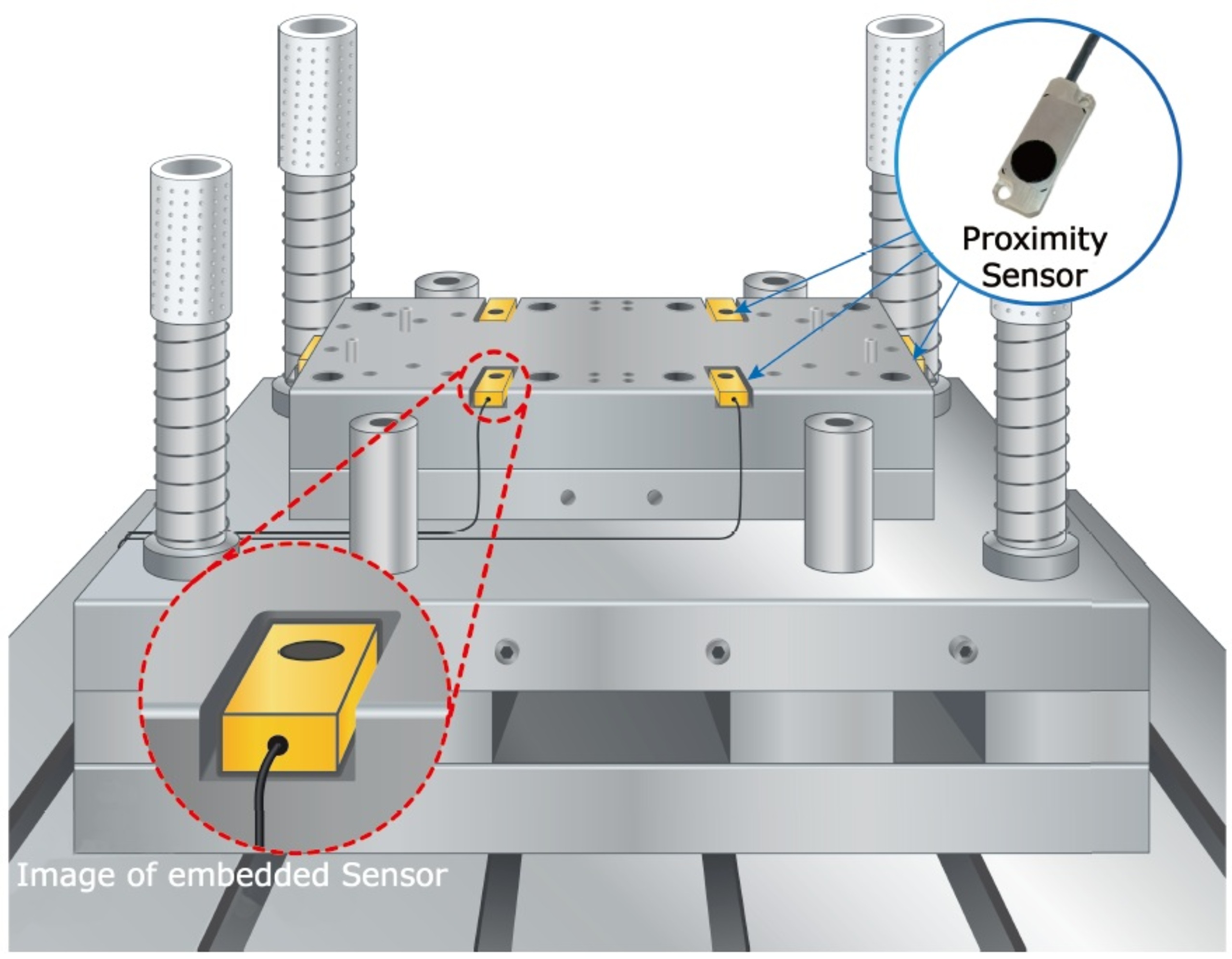

Contactless proximity sensor in board form
Non-contact, so measurement of rotating objects is possible.
The thinness (2 mm) allows measurement of gaps.
Fast 4 kHz response. (Available up to 20 kHz)
The coil is mounted on the board, and the sensor part is very inexpensive. (Additional initial cost required.)
![Flat Pulse Coder - Thin Model](../../wp-content/themes/levex/img/products/13/top.jpg)
Model
FPC | 10 | – | 05 | – | 1 |
---|---|---|---|---|---|
① | ② | ③ | ④ |
① | Model classification | FPC | : | Flat Pulse Coder – Thin Model |
② | Sensor diameter (mm) | 10 | : | φ3 |
50 | : | φ5 | ||
80 | : | φ10 | ||
③ | Measuring range (mm) | 05 | : | 5 |
④ | Amplifier | 1 | : | CV05 |
2 | : | CVS5 |
Outline drawing

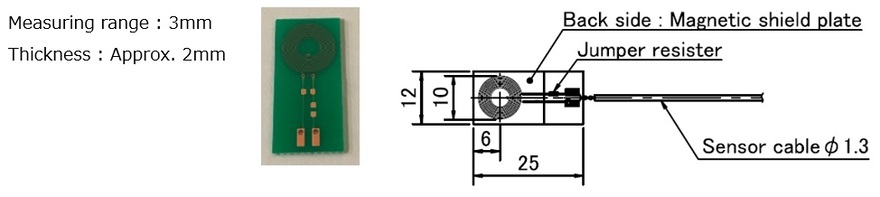

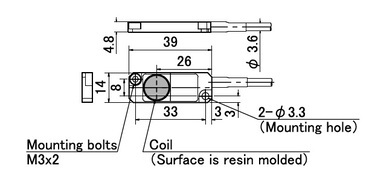

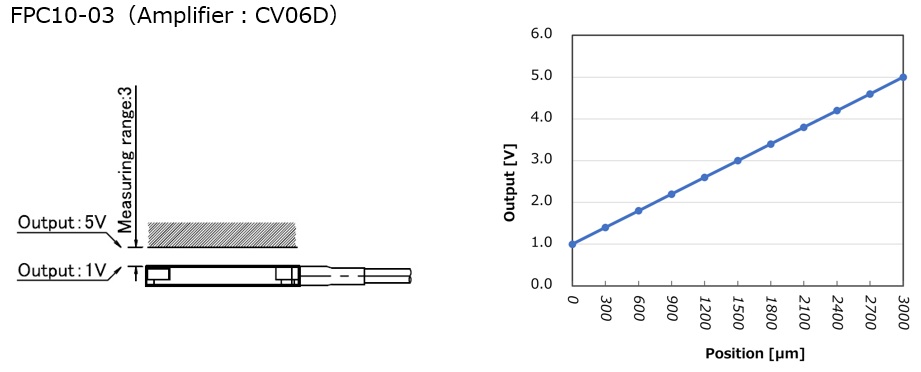

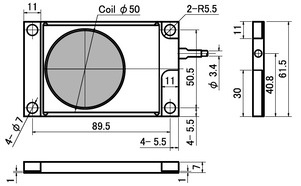

FPC10-05
![FPC10-005](../../wp-content/themes/levex/img/en/products/13/img_02.jpg)
![FPC10-005](../../wp-content/themes/levex/img/en/products/13/img_02_2.jpg)
Plural coils type (Production sample)
●Φ50 coil + Φ10 coil × 4
![外形図](../../wp-content/themes/levex/img/products/13/img_03.jpg)
![外形図](../../wp-content/themes/levex/img/products/13/img_03.jpg)
●Φ10コイル × 9個
![外形図](../../wp-content/themes/levex/img/products/13/img_04.jpg)
![外形図](../../wp-content/themes/levex/img/products/13/img_04.jpg)
●Φ80 coil + Φ10 coil × 9
![外形図](../../wp-content/themes/levex/img/en/products/13/img_05.jpg)
![外形図](../../wp-content/themes/levex/img/en/products/13/img_05.jpg)
Converter(CV05/CVS5/Mold)
Amplifier
Specification
Model | CV05 | CVS5 CVS5(Resin case type) |
---|---|---|
Power-supply voltage | DC12~24V ±10% | DC9~16V ±10% |
Current consumption | 40mA or less | |
Output voltage | Analog output DC1~5V | |
Resolution | Approx 1/2000 of measuring range | |
Responsiveness | About 4kHz(-3dB) | |
Operating temperature range | -20~80℃ (No condensation) | |
Temperature characteristics | 0.025%/FS or less (0 to 60℃ @ center of measurement range) |
Outline drawing
CV05
![CV05](../../wp-content/themes/levex/img/products/05/img_05.jpg)
![CV05](../../wp-content/themes/levex/img/en/products/05/img_06.jpg)
CVS5
![CVS5](../../wp-content/themes/levex/img/products/05/img_07.jpg)
![CVS5](../../wp-content/themes/levex/img/en/products/05/img_08.jpg)
CVS5(Built-in resin case type)
![CVS5(Built-in resin case type)](../../wp-content/themes/levex/img/products/05/img_09.jpg)
![CVS5(Built-in resin case type)](../../wp-content/themes/levex/img/en/products/05/img_10.jpg)
(Options) CV05 sync board
Purpose
When multiple sensors of the same type are used, periodic interference noise may occur in the output.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.
To counter this, noise is reduced by synchronizing the signal generation circuits in each amplifier.
Lineup
For 2 axes
![For 2 axes](../../wp-content/themes/levex/img/products/05/img_11.jpg)
![For 2 axes](../../wp-content/themes/levex/img/en/products/05/img_12.jpg)
For 4 axes
![For 4 axes](../../wp-content/themes/levex/img/products/05/img_13.jpg)
![For 4 axes](../../wp-content/themes/levex/img/en/products/05/img_14.jpg)
For 6 axes
![For 6 axes](../../wp-content/themes/levex/img/products/05/img_15.jpg)
![For 6 axes](../../wp-content/themes/levex/img/en/products/05/img_16.jpg)
Precautions for use
– Only connect sensors and amplifiers with the same serial numbers.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.
– The master amplifier is fixed.
– Slave amplifiers do not operate in isolation.
– Operation with a reduced number of slave amps connected is possible if they are the same model.
Output – power cable
Connection configuration
![Connection configuration](../../wp-content/themes/levex/img/en/products/05/img_17.jpg)
Standard
Cable: Dedicated 4-core cable (Length:2m)
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
End treatment – Amplifier side : With connector / Measuring instrument side : Unfinished
![Connection configuration](../../wp-content/themes/levex/img/en/products/05/img_18.jpg)
(End treatment example) * We fit a range of connectors.
(Signal side) With BNC conversion cable
![(Signal side) With BNC conversion cable](../../wp-content/themes/levex/img/en/products/05/img_19.jpg)
(Signal side) BNC conversion cable + (Power supply side) Banana plug
![(Signal side) BNC conversion cable + (Power supply side) Banana plug](../../wp-content/themes/levex/img/en/products/05/img_20.jpg)
(Signal line) With Tajimi Electronics connector
![(Signal line) With Tajimi Electronics connector](../../wp-content/themes/levex/img/en/products/05/img_21.jpg)
